Hyundai Elantra (CN7): Rear Door / Repair procedures

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Repair procedures

Adjustment
Glass Adjustment

•
Check the glass run channel for damage or deterioration, and replace them if necessary.
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

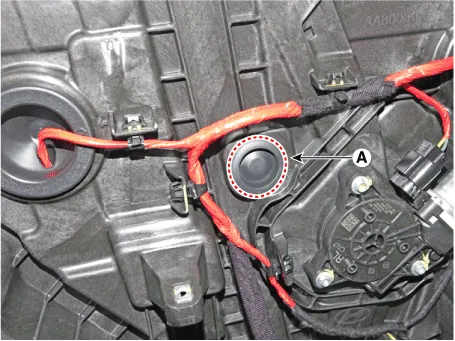

Separate the mounting plug hole (A) from the rear door module.

3.
After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

4.
Check the glass for normal operation.
Door Striker Adjustment
1.
After loosening the mounting screw, adjust the striker (A) by moving it forward and backward or from side to side and then tighten the bolts (B).
Tightening torque :
(B) : 17.7 - 33.3 N.m (1.8 - 3.4 kgf.m, 13.0 - 24.6 lb-ft)

2.
Tap on the striker with a plastic hammer to adjust the striker. The striker will not move much, but will give some adjustment.
3.
Hold the outer handle out, and push the door against the body to make sure that the striker fits flush with the body. If the door latches properly, tighten the screws and recheck.
Door Position Adjustment
1.
Check that the door and body edges are parallel.

2.
Place the vehicle on a level surface before adjusting the doors.
3.

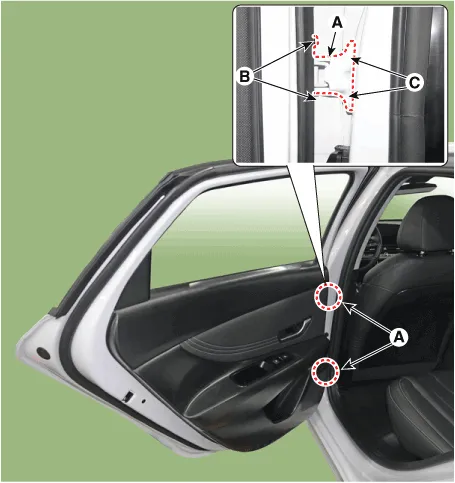

Adjust the hinges (A) :
- Loosen the door mounting bolts slightly, and move the door in or out until it flush with the body.
- Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary.
- Place a shop towel on the jack to prevent damage to the door when adjusting the door.
Tightening torque :
(B) : 21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)
(C) : 37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb-ft)

4.
Grease the pivot portions of the hinges indicated by the arrows.
5.
Check for water leaks.

    Components 1. Rear door trim 2. Rear door delta inner cover 3. Rear door belt inside weatherstrip 4. Rear door module 5. Rear door belt outside weatherstrip 6.

    Components and components location Component Location 1. Rear door trim Repair procedures Replacement    â€¢ When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
