Hyundai Elantra: Lighting System / Components and components location
Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Lighting System / Components and components location
| Component Location |

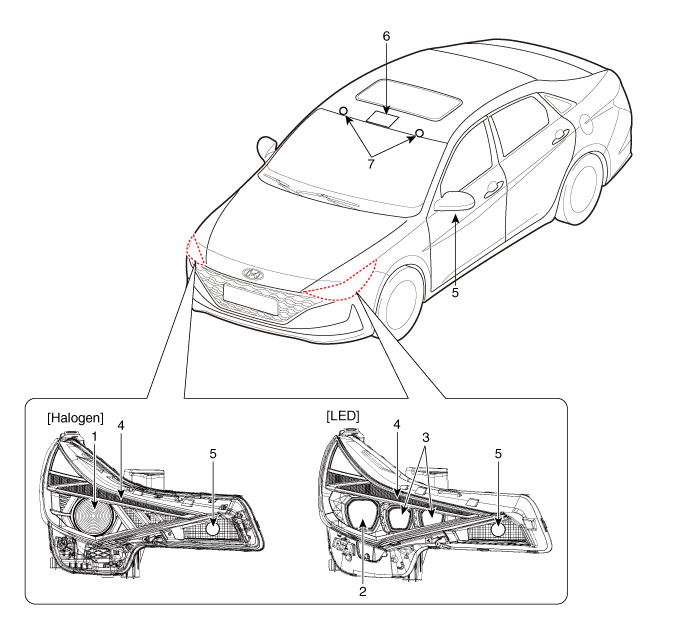

| 1. High/Low beam 2. Low beam 3. High beam 4. Position lamp&DRL | 5. Front turn signal lamp 6. Map lamp 7. Vanity lamp |

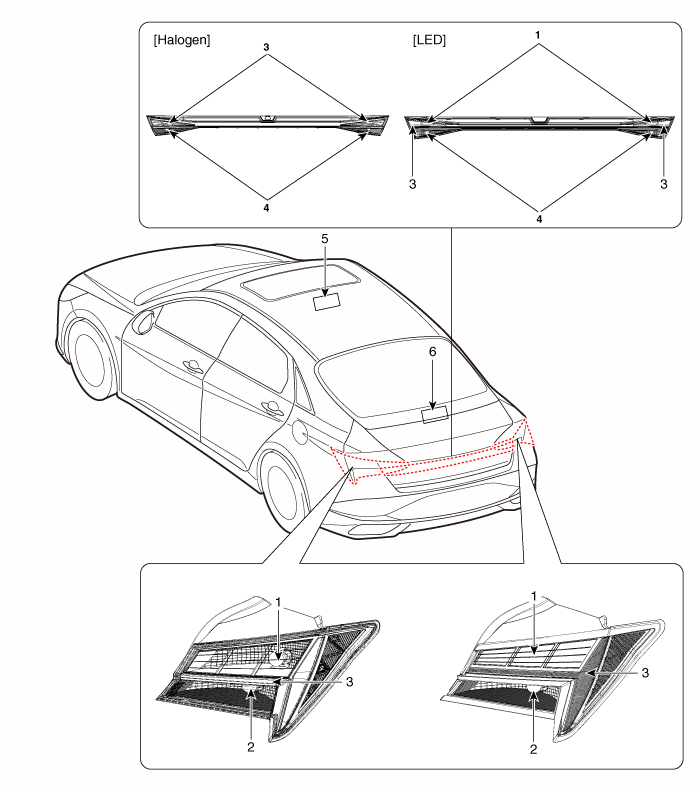

| 1. Stop lamp 2. Turn signal lamp 3. Tail lamp | 4. Back up lamp 5. Room lamp 6. High mounted stop lamp |
Specifications
Specification
Item
Type
Bulb Watt (W)
FrontHead lampHalogenLow beam / High beam9005L+60DRL/Position lampLEDLEDLEDLow beamLEDLEDHigh beamLEDLEDDRL/Position lampLEDLEDTurn signal lampPY21W21Door mirror turn signal lamp LEDLEDRearRear combinationHalogenTail lampW5W5Tail / Stop lampP21/5W21 / 5Back up lampW 16W16Turn signa..
Other information:
Hyundai Elantra (CN7) 2021-2025 Owner's Manual: Electrochromic mirror (ECM) with HomeLink® system
Your vehicle may be equipped with a Gentex Automatic-Dimming Mirror with an Integrated HomeLink® Wireless Control System. During nighttime driving, this feature will automatically detect and help reduce rearview mirror glare. The HomeLink® Universal Transceiver allows you to activate your garage door(s), electric gate, home lighting, etc. (1) HomeLink Channel 1 (2) HomeLink Channel 2 ..
Hyundai Elantra (CN7) 2021-2025 Service Manual: CVVT (Continuous Variable Valve Timing) System
Description and operation DescriptionContinuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine speed and load.By controlling CVVT, the valve over-lap or under-lap occurs, which makes better fuel economy and reduces exhaust gases (NOx, HC). CVVT improves engine pe..
