Hyundai Elantra: ESC (Electronic Stability Control) System / ESC OFF Switch

Hyundai Elantra (CN7) 2021-2025 Service Manual / Brake System / ESC (Electronic Stability Control) System / ESC OFF Switch

Description and operation
Description
1.

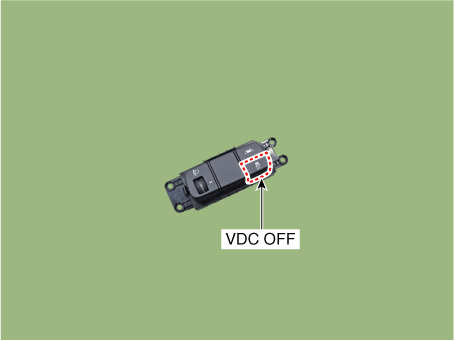

The ESP OFF switch is for the user to turn off the ESP system.
2.
The ESP OFF lamp is on when ESP OFF switch is engaged.
Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.

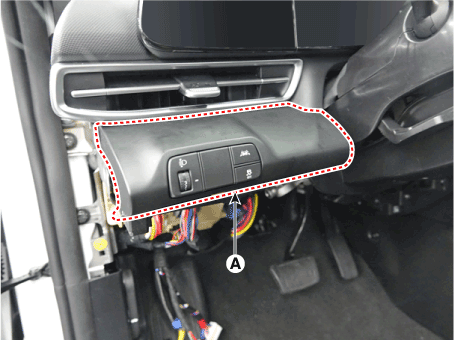

Remove the crash pad lower pannel.
(Refer to Body - "Crash Pad Lower Pannel")
3.

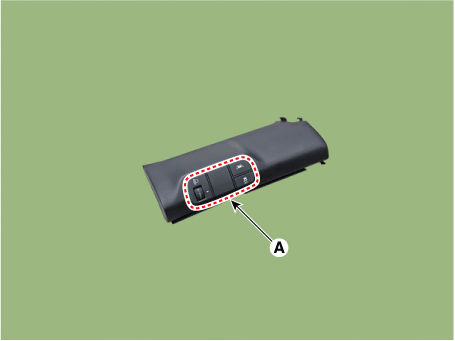

Loosen the screw and than removing the ESC OFF switch (A).

4.

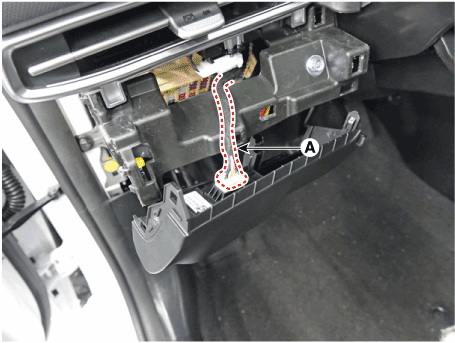

Disconnect the crash pad lower switch connector (A).

5.
Remove the VDC OFF switch (A) after loosening screw.
