Hyundai Elantra: Rear View Monitor (RVM) / Function operation
Rear view
Operating conditions
- Shift the gear to R (Reverse), the image will appear on the screen.

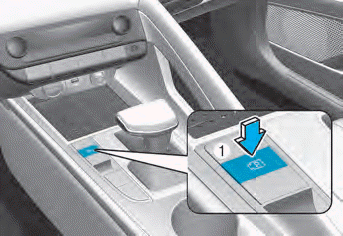

- Press the Parking/View button (1) while the gear is in P (Park), the image will appear on the screen. However, parking guidance is not displayed.
Off conditions
- The rear view cannot be turned off when the gear is in R (Reverse).
- Press the Parking/View button (1) again while the gear is in P (Park) with the rear view on the screen, the rear view will turn off.
- Shift the gear from R (Reverse) to P (Park), the rear view will turn off.
Maintaining rear view
The rear view will maintain showing on the screen to help you when parking. However, parking guidance is not displayed.
Operating conditions
Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.
Off conditions
- When vehicle speed is above 6 mph (10 km/h), the rear view will turn off.
- Shift the gear to P (Park), the rear view will turn off.
Driving rear view
.png)
.png)
The driver is able to check the rear view on the screen while driving, it is to assist with safe driving.
Operating conditions
Press the Parking/View button (1) while the gear is in D (Drive) or N (Neutral), the driving rear view will appear on the screen.
Off conditions
- Press the Parking/View button (1) again, the driving rear view will turn off.

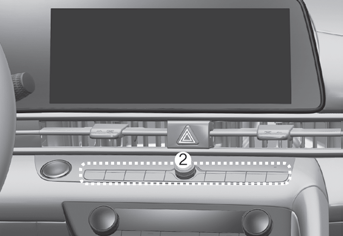

- Press one of the infotainment system button (2), the driving rear view will turn off.
- Shift the gear to P (Park), the driving rear view will turn off.
When operating
- If the gear is shifted to R (Reverse), while Driving rear view is displayed on the screen, the screen will change to rear view with parking guidance.
- When Driving rear view is displayed
on the screen, an icon (
.png)
) will
appear
on the upper right side of the screen
indicating that the rear view is being
displayed.
Rear top view
.png)

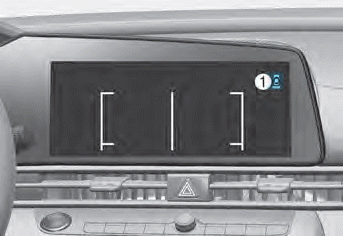

When you touch the icon (1), the top view is displayed on the screen and shows the distance from the vehicle in the back of your vehicle while parking.
Function settings
Camera settings
You can change Rear View Monitor
settings by pressing the setup icon
() on the screen while the system
is
operating, or select ‘Driver Assistance →
Parking Safety → Camera Settings’ from
the Settings menu while the Engine
Start/Stop button is in the ON position...
Function malfunction and
limitations
Function malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
we recommend that the system be
inspected by an authorized HYUNDAI
dealer...
