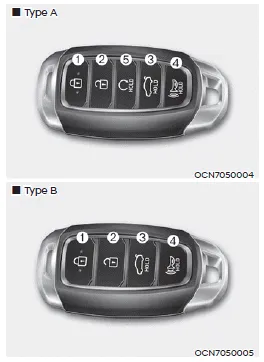

Your HYUNDAI uses a smart key, which you can use to lock or unlock a door (and trunk) and even start the engine even just carrying the key.
(1) Door Lock
(2) Door Unlock
(3) Trunk Open
(4) Panic
(5) Remote Start
If the remote key is not working properly, try replacing the battery with a new one. Battery Type: CR2032 To replace the battery: 1. Insert a slim tool into the slot and gently pry open the cover.
1. Close all doors, engine hood and trunk. 2. Carry the smart key. 3. Either press the door handle button or press the Door Lock button (1) on the smart key.
Repair procedures Inspection1.Measure the resistance between the terminals.2.The measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)Replacement1.Disconnect the negative (-) battery terminal.
Description and operation DescriptionThe intake actuator is located at the blower unit. It regulates the intake door by a signal from the control unit. Pressing the intake selection switch will shift between recirculation and fresh air modes. Components and components location Components Location1.
