Hyundai Elantra: AVN System / Mic
Repair procedures
| Inspection |
| 1. | Disconnector the negative (-) battery terminal. |

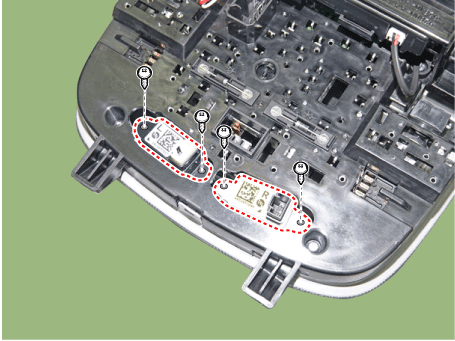

| 2. | Remove the overhead console lamp. (Refer to Body Electrical System - "Overhead Console Lamp") |
| 3. | Remove the overhead console cover after loosening the screws.
|

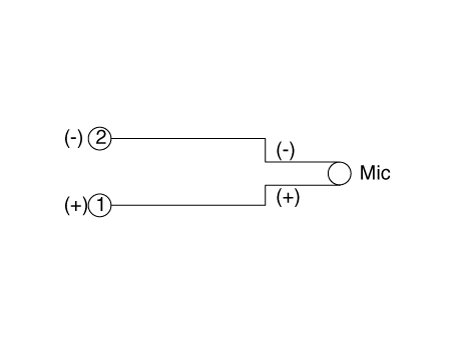

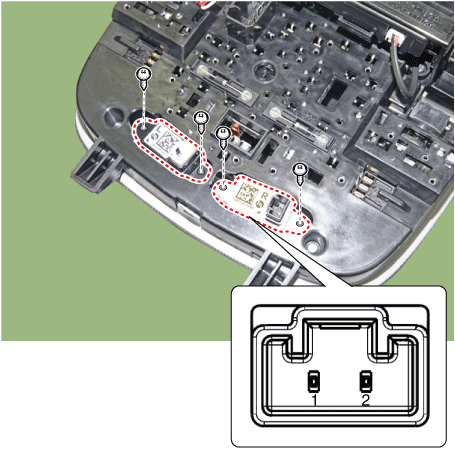

| 4. | Check the continuity of between terminals.
|
USB Jack
Description and operation
DescriptionThe multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc...
Front monitor
Components and components location
Components
Repair procedures
Removal10.25" Cluster + 10.25" Monitor
•
Take care not to scratch the crash pad and related parts...
Other information:
Hyundai Elantra (CN7) 2021-2025 Service Manual: PM Sensor
Description and operation DiscriptionMonitor the air quality inside the vehicle in real time (PM sensor) and display the status on the screen.Automatically operate when fine dust concentration is high (Condition: Bet mode + A/C ON + 3rd speed or higher) Components and components location Components Location1...
Hyundai Elantra (CN7) 2021-2025 Service Manual: Components and components location
Components[G 1.6 MPI / LPI]1. Drive air bag module (DAB)2. Wiring3. Steering wheel4. Damper5. Remote control switch6. Switch bezel7. Lower cover[G 1.6 T-GDI]1. Lower cover2. Switch bezel3. Remote control switch4. Paddle shift5. Damper6. Steering wheel7...
