Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Transverse Trim

Components and components location
Component Location

1. Rear transverse trim


Repair procedures
Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.

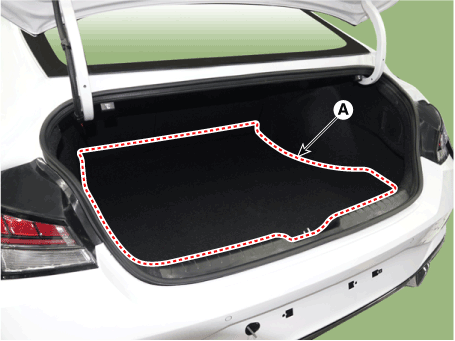

Remove the luggage boad (A).

2.

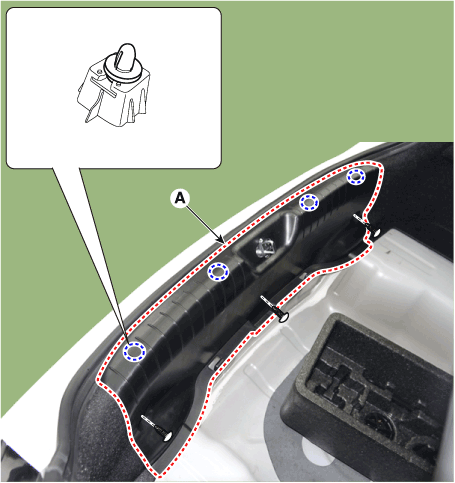

Loosen the mounting clips and remove the rear transverse trim (A).

3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).
